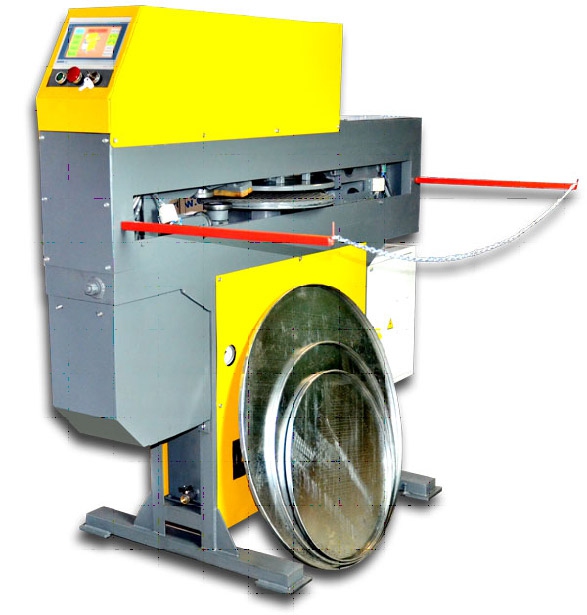

Hydraulic circle cutting - beading machine К-1000АС for road signs.
Microprocessor-controlled machine automatically cuts a circle from a metal blank and makes double flanges.
Brief description:
- Mode: Auto
- Power consumption: 2.2kW/380V
- Capacity: 1pce/45sec
- Warranty: 1 year
Key features:
|
Signs diameters |
400-1000 мм |
|
Maximum thickness of processed metal |
Galvanized steel up to 1.5 mm |
|
Table rotating speed |
70 rpm |
|
Number of hydraulic cylinders |
6 |
|
Power supply |
380 V |
|
Total power of drives |
2.2 kW |
|
Overall dimensions W х L х H |
1800х900х1900 |
|
Workpiece and blank piece retaining |
Auto / Manual mode |
|
Double flanging and readjustment of a sign nominal size |
Auto / Manual mode |
|
Time of circle cutting from a square workpiece |
2 sec |
|
Time of double flanging |
45 sec |
|
Time of automatic size readjustment for a sign |
5 sec. |
|
Operator |
1 person |
|
Net weight |
550 kg |
- The machine automatically cuts a circle from a square workpiece and makes double flanges;
- The workpieces are retained automatically;
- The full-cycle speed of a road sign sub-base production is 45 sec. as maximum;
- Redesigned bending system comprising three forming rollers allows fast and high-quality double flanging in automatic mode;
- No auxiliary attachments are required to produce the road sign sub-bases with a diameter of 600, 700, 900!
- Change-over from size 1 or 2 to size 3 takes just 5 sec. and it is made automatically in an unattended mode;
- Manufacturing process of a round road sign frame is fully automated and therefore manual labor is virtually eliminated. The operator just needs to place/remove a workpiece. All functions (cutting, flanging, size adjustment, workpiece retaining) are automatically and manually controlled from a control panel.
