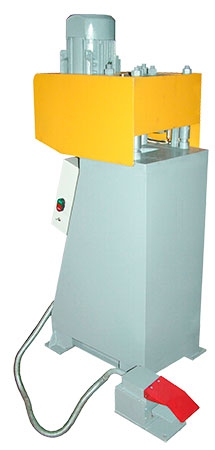

Electric-powered punching press
Electric-powered press with interchangeable dies is designed or punching angles of square and triangular road signs.
Commercial offerBrief description:
- Electromechanical drive
- Capacity: up to 30 strokes per minute
- Max operating force: 3.5 t
- Warranty: 1 year
Specifications:
|
Maximum operating force: |
3.5t |
|
Operating stroke: |
10mm |
|
Capacity: |
up to 30 strokes/min |
|
Maximum thickness of a steel sheet: |
1.2mm |
|
Power supply: |
380V |
|
Motor output: |
1.5kW |
|
Overall dimensions: |
400х800х1400mm |
|
Net weight: |
170kg |
|
The machine can be additionally fitted with the following dies: |
|
|
angle punching die for triangular/square signs |
33,500 RUB |
|
half-clamp punching die 57/76 mm |
33,500 RUB |
|
punching die for a road sign Т-fastener 0.8-1.2mm |
40,500 RUB |
Configuration:
- Electric-powered press;
- Foot-operated switch;
- Instructions, Technical Data Sheet.
Angle punching uses quick-detachable cassette-type dies. Die installation/dismounting takes less than 1 minute. Punching press die cutters are made of hardened ground alloyed tool steel. The cutters can be resharpened at the surface grinding machine. The work table is equipped with an adjustable stop which supports a workpiece and enables the road sign blank processing and positioning. The press baseplate has a process waste removal output, and a large collection tray for punched angles.
Punching process is controlled by a foot-operated switch.
