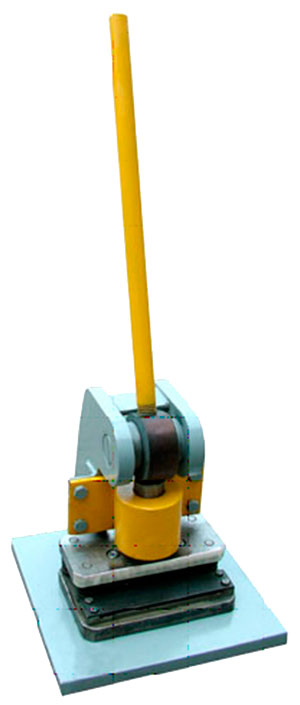

Eccentric punching press
Manual-operated press with interchangeable dies is designed for punching corners of square and triangular road signs and subsequent double flanging.
Commercial offerBrief description:
- Drive: manual
- Maximum operating force: 3.2t
- Capacity: up to 30 strokes/min
- Warranty: 1 year
Specifications:
|
Maximum operating force: |
3.2t |
|
Operating stroke: |
7mm |
|
Capacity |
up to 30 strokes/min |
|
Maximum thickness of |
a steel sheet – 1.2 mm aluminum – 2.0 mm |
|
Overall dimensions: |
350х350х500 mm |
|
Net weight: |
30 kg |
|
The machine can be additionally fitted with the following dies: |
|
|
angle punching die for triangular/square signs |
33,500 RUB |
|
half-clamp punching die 57/76 mm |
33,500 RUB |
|
punching die for a road sign Т-fastener 0.8-1.2mm |
40,500 RUB |

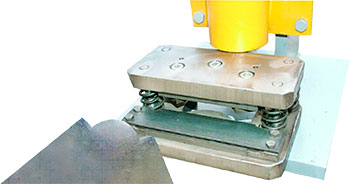

Blades made of high-grade tool steel can be repeatedly ground. Unique design of the die enables punching of the road sign corners without any auxiliary guides. Die changing takes as much as 1 minute. The press baseplate has a process waste removal output. The basement and frame made of 20mm steel ensure the tool high strength and durability.The machine can be additionally fitted with the following dies:

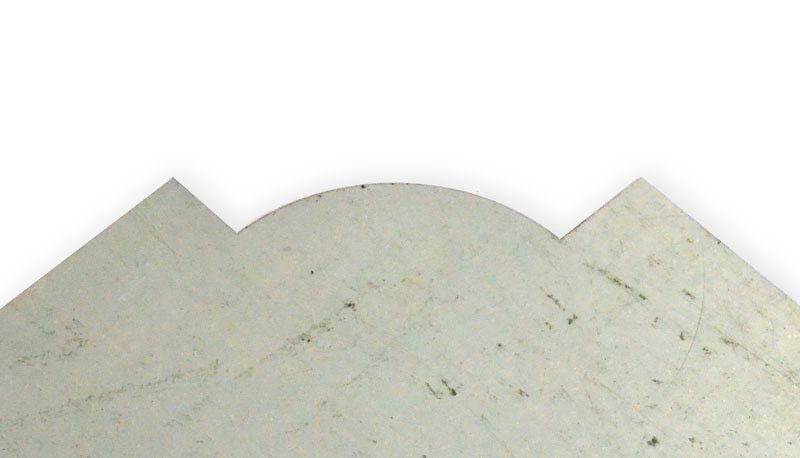

- corner punching die for triangular signs; .

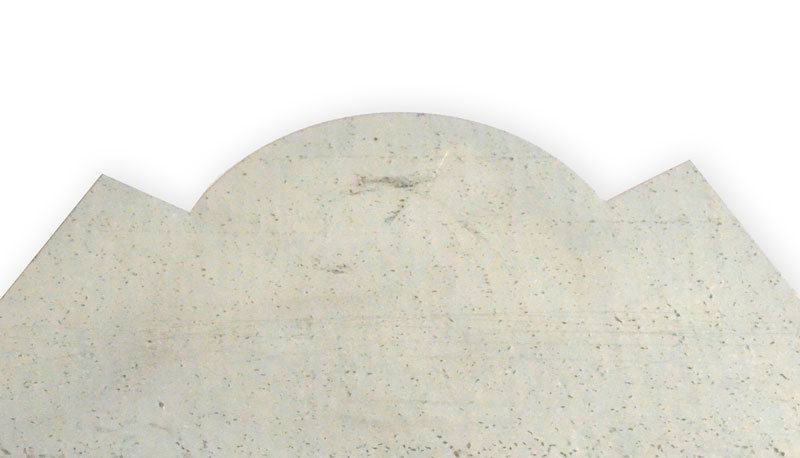

- corner punching die for square signs;
- punching die for a road sign Т-fastener.
