Applicator
Applicator is designed for cold application of self-adhesive reflective film.
Commercial offerBrief description:
-Max. effective width: 1650 mm
- Power consumption: 0.75kW/380V
- Speed: 6m/min
- Warranty: 1 year
Key features:
|
Maximum effective width |
1650 mm |
|
Maximum base thickness |
35 mm |
|
Shaft diameter |
at least 130 mm |
|
Speed |
6 m/min* |
|
Shafts |
2 pcs. |
|
Power supply |
380 V |
|
Motor power |
0.75 kW |
|
Overall dimensions W х L х H |
1900х1500х1400 |
|
Net weight |
200 kg |
|
Reverse operation |
Yes |
|
Table dimensions (2 pcs.) |
1830х750 mm |

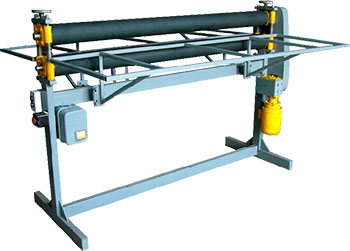

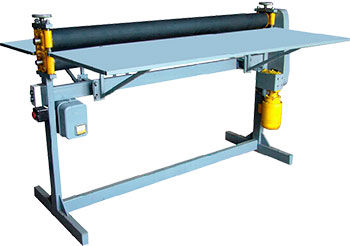

Applicator design provides for cold application of self-adhesive and reflective film to any base type with maximum thickness of 35mm. The machine was initially designed for rolling on the reflective film to complete road signs.
Shafts of 135mm in diameter are covered with high quality resin withstanding significant compression and abrasion loads. The machine can be castomized for operation both from three-phase and single-phase network. Additional shafts for the film reels and a shaft for the film base removal can also be further installed.
With dismountable tables of 1830х750mm, a convinient rolling-on the film both to a galvanized steel sheet and to a complete road sign or advertising structure is allowed.
The shafts speed regulation devices can be installed at the request of the Customer.
